Test harness generation#

Settings#

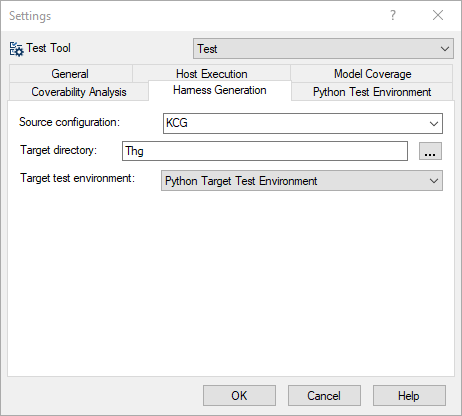

Select the extension Python Target Test Environment in SCADE Test Settings, Harness Generation tab.

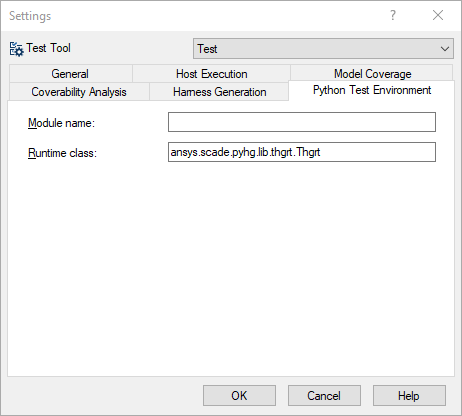

The settings page Python Target Test Environment is visible when the target is selected:

Module name (default name of the SCADE Suite model): Name of the Python proxy for the tested root operators.
Runtime class (default ansys.scade.pyhg.lib.thgrt.Thgrt): Class used by the generated scripts to assess the checks. The default class is delivered as an example, you can provide your own runtime, for example by deriving a new class from the default one.

The tool generates one Python script per test record, named <procedure>_<record>.py.
